Closed Loop Transfer Function Matlab

Run the command by entering it in the matlab command window. To compute the stability margins of this system with the margin command which assumes negative feedback you need to use the negative feedback open loop response. The closed loop transfer function of the given system with a pd controller is.

christmas vinyl radio station church chairs with arms for sale clear self adhesive vinyl roll clean green carpet cleaning seattle clean up bleach spill on carpet closetmaid pro garage 36 inch 4 door tall cabinet coastal living bar stools coastal master bedroom design ideas

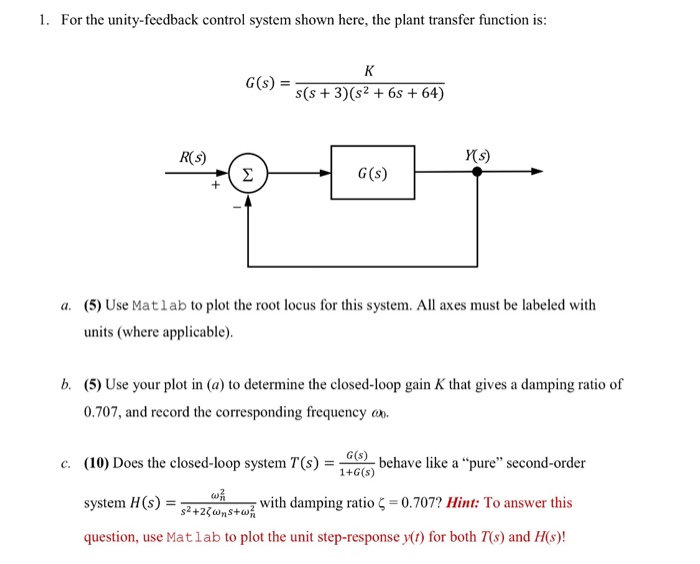

Solved In Matlab A Compute The Closed Loop Transfer Fun Chegg Com

Control Tutorials For Matlab And Simulink Extras Steady State Error

Using Feedback To Close Feedback Loops Matlab Simulink Example

Closed Loop Transfer Function From Generalized Model Of Control System Matlab Getiotransfer Mathworks Italia

Find Closed Loop Transfer Function From The Open Loop Transfer Function For A Unity Feedback

Solved What Is The Open Loop Transfer Function What Is T Chegg Com

The root locus of an open loop transfer function is a plot of the locations locus of all possible closed loop poles with some parameter often a proportional gain varied between 0 and the figure below shows a unity feedback architecture but the procedure is identical for any open loop transfer function even if some elements of the open loop transfer function are in.

Closed loop transfer function matlab. This is because the expression g 1 g k is evaluated as a ratio of the two transfer functions g and 1 g k. 8 let equal 300 as before and let equal 10. You can add a controller and compute the closed loop transfer function. Example h getiotransfer t in out openings returns the transfer function calculated with one or more loops open.

How to create a transfer function to model a linear time invariant system. C pid kp 0 kd t feedback c p 1 t 0 0 01 2. Using the results of section 3 5 the digital control system of figure 3 1 yields the closed loop block diagram of figure 3 14 the block diagram includes a comparator a digital controller with transfer function c z and the adc analog subsystem dac transfer function g zas z the controller and comparator are actually computer programs and replace the computer block in figure 3 1. Modeling of dc motor in matlab more detail.

In the example above h2 has double the order of h. For example consider the following system where t is the closed loop transfer function from r to y. A major issue with computing h from the formula is that it inflates the order of the closed loop transfer function. The closed loop poles marked by blue x s lie in the left half plane so the feedback loop is stable for this choice of gain k.

You can analyze the performance of the closed loop system in both the time and frequency domains. You can read the damping ratio of the closed loop poles from this chart see labels on the radial lines. Here the damping ratio is about 0 7 suggesting a well damped closed loop response as confirmed by. Two transfer functions are combined to create a plant model.

Enter the following commands into an m file and run it in the matlab command window. H getiotransfer t in out returns the transfer function from specified inputs to specified outputs of a control system computed from a closed loop generalized model of the control system.
